电池

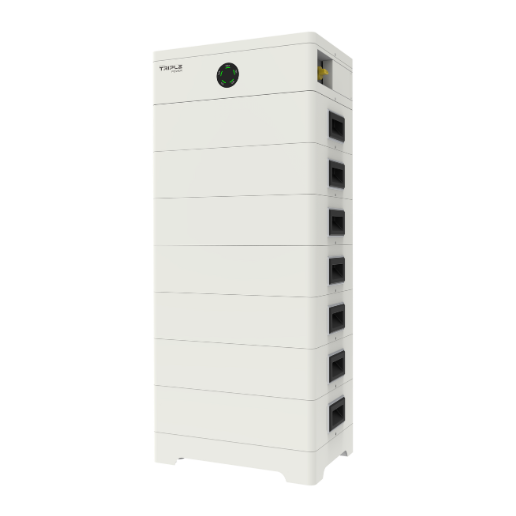

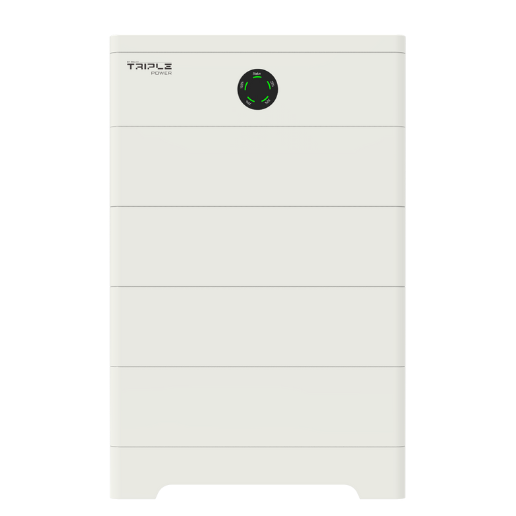

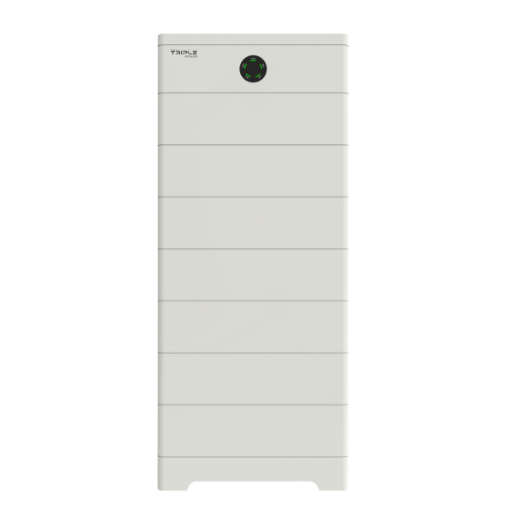

T-BAT-SYS-HV-S3.6
- 7.3千瓦时-47.9千瓦时
- 观看视频
产品优势
该电池采用可堆叠模块与即插即用设计，安装便捷，具备卓越灵活性。T-BAT-SYS-HV-S3 黑桃tv高清播放，6搭载高性能处理器，为用户持续变化的用电需求提供安全易用的能源黑桃tv视频资源。。
灵活适配
容量可扩展，满足长期使用需求
模块化堆叠设计，即插即用
高性能表现
7.3-47.9 kWh宽容量范围
最大50A充放电电流
循环次数＞6000次
稳定可靠
磷酸铁锂电芯与高性能处理器
IP65防护等级
在线视频平台 - 智能管理
远程故障诊断、升级与维护
独家电池加热技术，保障低温运行
可选二合一并联线缆 黑桃tv直播，便捷扩容并延长电池寿命.
Product Parameters (黑桃tv视频资源)
T-BAT HS7.2 (在线视频平台)- SYSTEM DATA
Number of modules 2 Modules Rated energy 7.37 kWh Rated voltage 102.4 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- T-BAT HS10.8
- SYSTEM DATA
Number of modules 3 Modules Rated energy 11.06 kWh Rated voltage 153.6 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- T-BAT HS14.4
- SYSTEM DATA
Number of modules 4 Modules Rated energy 14.75 kWh Rated voltage 204.8 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- T-BAT HS18.0
- SYSTEM DATA
Number of modules 5 Modules Rated energy 18.43 kWh Rated voltage 256.0 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- T-BAT HS21.6
- SYSTEM DATA
Number of modules 6 Modules Rated energy 22.12 kWh Rated voltage 307.2 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- "在线视频平台" T-BAT HS25.2
- SYSTEM DATA
Number of modules 7 Modules Rated energy 25.80 kWh Rated voltage 358.4 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- T-BAT HS28.8
- SYSTEM DATA
Number of modules 8 Modules Rated energy 29.49 kWh Rated voltage 409.6 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- 黑桃tv - T-BAT HS32.4
- SYSTEM DATA
Number of modules 9 Modules Rated energy 33.18 kWh Rated voltage 460.8 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- T-BAT HS36.0
- SYSTEM DATA
Number of modules 10 Modules Rated energy 36.86 kWh Rated voltage 512.0 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- T-BAT HS39.6
- SYSTEM DATA
Number of modules 11 Modules Rated energy 40.55 kWh Rated voltage 563.2 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- T-BAT HS43.2 (黑桃tv视频资源)
- SYSTEM DATA
Number of modules 12 Modules Rated energy 44.24 kWh Rated voltage 614.4 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
- T-BAT HS46.8 (黑桃tv视频资源)
- SYSTEM DATA
Number of modules 13 Modules Rated energy 47.92 kWh Rated voltage 665.6 V Max. charge/discharge current 50A
- GENERAL
Battery module 3.6 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 10 kg Battery type LFP Ingress protection IP65
资料下载
- 单页
- 用户手册
- 声明书
